Light-weight |
 |
minimize material weight |
|
|
|
|
Increase sound absorption efficiency [Alpha cabin test] |
|
when it is applied to trunk mat in the vehicle, more than
10% of sound absorbing power increased compared with
|
| |
foreign MB materials. [main frequency : 500 ~ 5000Hz] |
|
|
|
|
Cost-saving productivity by original process |
|
more than 10% cost saving compared with existing foreign material |
|
|
|
|
|
| |
 |
|
Existing low cost sound-absorption materials |
|
|
 |
|
|
 |
|
 |
| |
|
airborne particulates |
|
weighty |
|
low sound absorption strength by vinyl coating |
|
|
|
 |
|
 |
|
| |
|
 |
|
|
| |
|
mechanical bonding |
|
|
|
|
|
|
|
|
|
|
| |
|
airborne particulates |
|
weighty |
|
easy layer exfoliation |
|
|
|
|
|
|
|
|
|
|
|
|
Existing high cost sound-absorption materials |
|
|
|
|
|
| |
 |
|
New development of optimum MB method sound-absorption material |
|
|
|
|
|
“ PP based Melt blown method adopted sound-absorption material ” |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
 |
|
Melt- Blown PP Sound Absorption Sheet |
|
Used ultra-fine fiber |
|
Light weight |
|
Harmless to human body and allergy free |
|
Good sound-absorption properties |
|
Classification : 200g/m2, 300g/m2, 400g/m2, 600g/m2, 800g/m2, 1000g/m2 |
|
Width (mm) : 500mm / 1000mm / 1500mm |
|
Waterproof, low water absorption and good dryness |
|
|
|
| |
 |
|
|
|
|
|
|
 |

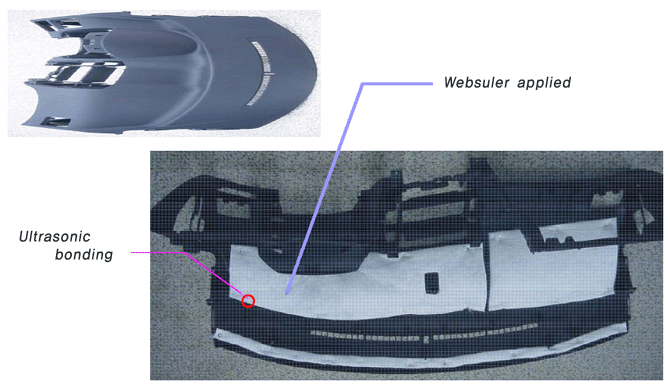

Web-Q(Quiting) |
|
|
|
Web-QA(Quiting+Adhesive) |
|
|
|
Web-W(Welding) |
|
|
|
|
|
|
|
|
| |
 |
|
| |
 |
|
|
|

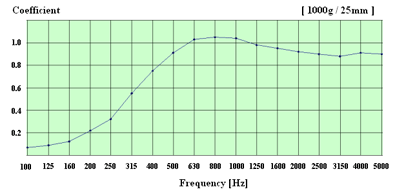

Frequency (Hz) |
Coefficient |
Frequency (Hz) |
Coefficient |
100 |
0.07 |
800 |
1.05 |
125 |
0.09 |
1000 |
1.04 |
160 |
0.12 |
1250 |
0.98 |
200 |
0.22 |
1600 |
0.95 |
250 |
0.32 |
2000 |
0.92 |
315 |
0.55 |
2500 |
0.90 |
400 |
0.75 |
3150 |
0.88 |
500 |
0.91 |
4000 |
0.91 |
630 |
1.03 |
5000 |
0.90 |
|
|
|
|
|
|
|
|
|
|
| |
 |
|
Light weight [200~1000g/m2] |
|
|
Highly sound absorptive [Alpha cabin, trunk mat equipped test] |
| |
: increased sound absorption ability by 10% comparing with existing materials |
|
|
Cost down 10% compared with existing imported material |
|
|
Flame retardant : FMVSS 302, ASTM E84, BS6853 etc. |
|
|
High heat insulation :thermal conductivity(KS K 0466) 0.022W/mK |
|
|
Water repellency : water repellent grade 4th [KS K 0590] |
|
|
100% recycling : eco friendly |
|
|
No airborne particulates : comfortable in the vehicle improvement of working environment |
|
|
|
| |
 |
|
Flame Retardant Coefficient : |
|
Residual flame time : 0.1 sec |
| |
Residual spark time : 0.0 sec |
| |
Carried length : 6.1 cm |
| |
Carried area : 20.6 cm² |
|
|
|
|
Specific Optical Density of Smoke [ASTM E662] : |
|
Maximum time = 30.5 min |
| |
Ds Max = 64 |
|
|
|
|
Toxic fume [BS6853] |
|
R = 0.42 |
|
|
|
|
FMVSS No. 302 : pass |
|
|
Tunnel test [ASTM E84] |
|
|
|
|
| |
 |
|
| |
 |
|
| |
 |
|
| |
 |
|
| |
 |
|
| |
 |
|

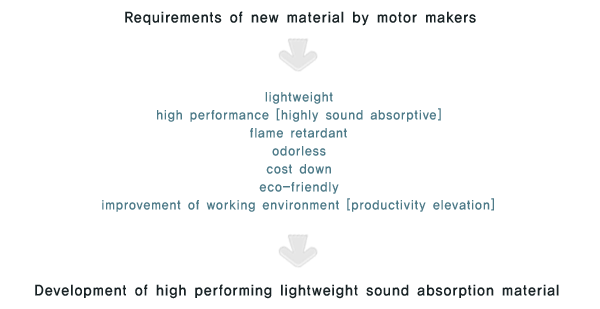

Realization to optimize high efficient sound absorption material |
|
multi grades : 200 ~ 1000G |
|
lightweight |
|
Slim |
|
highly sound absorptive |
|
flame retardant |
|
higher heat insulating for comfortable environment & energy saving |
|
Cost Down |
|
no airborne particulates |
|
Recycling |
|
improvement of working environment by no dust |
|
|
|
|

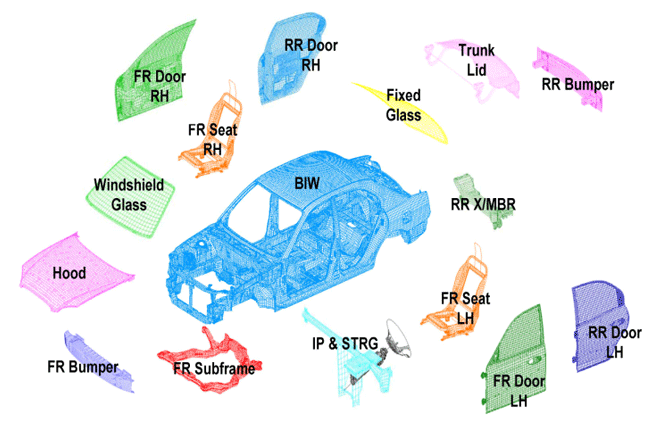

Active cooperation for new model vehicle’s NVH material designing.
|
|
|
|
| |
