| 1. Introduction |
| |
In the outfit working process of automobile, it makes airtight & watertight in door trim sealing.
Butyl rubber is a main composition with good adhesion in black color.
Once applied, it shows semi-permanent adhesive strength. |
|
| |
| 2. Composition |
| |
element |
function |
synthetic rubber |
base polymer |
functional filler |
complement for fluidity |
impregnating resin |
adhesiveness |
softener |
control viscosity |
extra components |
stabilizer, anti aging agent |
|
|
|
| |
| 3. Characteristics |
|
| |
1) not be stiffened in boiling condition or room temperature, keeping semi permanent adhesion. |
| |
2) not flow out of adhesive due to no fluidity of glue, maintaining stable quality of goods. |
| |
3) not contain hazardous materials, and safe to human body. |
| |
4) good in storage & stable preservation due to physical stability. |
|
| |
| 4. Application |
|
| |
necessary for process equipment because it’s provided in roll type of tape. |
| |

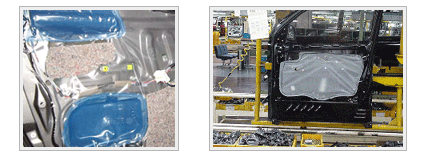

1) bond door access hole cover |
| |
2) apply to various decorative components in assembly. |
| |
 |
|
| |
| 5. how to use |
|
| |
1) remove the liner attached one side of product, and apply to preferred area, and cut away after application of necessary
length. |
| |
2) not integral dryness, if inevitably need to heat the material, be referred that thermal resistance is 180℃×20min. |
|
| |
| 6. Product Standard |
|
| |
Standard size is 3.5T×7m/m×20M ROLL but other sizes are available upon client’s request. |
|
| |
| 7. Product control |
|
| |
1) can be preserved for 3 months upon normal temperature. |
| |
2) cautious not to be deformed upon loading by the weight. |
| |
3) cautious not to be exposed on sunray or long term high temperature. |
|
| |
| 8. Control of Physical Properties |
|
| |
title of test |
control range |
control range |
A TYPE |
B TYPE |
impregnation degree |
20±2℃ |
65 ∼ 85
|
90 ∼ 110 |
tensile strength |
initial (Kg/㎠) |
20±2℃×24hr |
0.2 ∼ 0.6 |
0.2 ∼ 0.5 |
after heat aging (%) |
70±2℃×168hr |
60 below |
60 below |
Elongation |
initial (%) |
20±2℃×24hr |
1,200 above |
1,200 above |
after heat aging (%) |
70±2℃×168hr |
60 above |
60 above |
compression ratio (%) |
20±2℃×24hr |
30 ∼ 50 |
30 ∼ 50 |
recovering ratio (%) |
20±2℃×24hr |
20 above |
20 above |
shear adhesion
strength |
initial(Kg/1.5㎠) |
20±2℃×24hr |
0.6 above |
0.5 above |
after heat aging |
70±2℃×168hr |
0.6 above |
0.5 above |
water proof |
40±2℃×24hr |
0.6 above |
0.5 above |
exfoliation
strength |
initial(kg/7mm) |
20±2℃×24hr |
0.6 above |
0.5 above |
after heat aging |
70±2℃×168hr |
0.6 above |
0.5 above |
water proof |
40±2℃×24hr |
0.6 above |
0.5 above |
SEALING (mm) |
20±2℃×24hr |
100 above |
100 above |
contamination on painted surface |
70±2℃×168hr |
no considerable
swelling or eruption
on tape |
no considerable
swelling or eruption
on tape |
W/M × 100hr |
|
|
| |
|
|
| |
| 9. Manufacturing Process |
|
| |
